【Product Description】
FST800-216 High temperature pressure sensor boast better performance and reliability along with: Absolute, Gauge and Densitometric measurements; Multiple pressure ranges, port types, termination types and outputs, High-end material kits, Professional technical support.
【Product Features】
♦ Advanced glass micro-melting process, elastomer overall structure design, no leakage hidden danger
♦ Equipped with heat sink, 125°C temperature compensation, continuous operation at high temperature, suitable for long-term medium temperature over 100R°C
♦ Excellent shock, overload, vibration and corrosion resistance
♦ Advanced temperature digital compensation function, wide operating temperature range
♦ High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection
♦ High precision, high frequency response, good long-term stability
【Applications】
♦ Medical high temperature and high pressure disinfection
♦ Measurement of high temperature media such as steam and hot oil
♦ Measurement and control in the boiler industry
♦ High temperature pressure measurement and control for other automation systems
【Technical Parameters】
| Pressure type | Gauge pressure, absolute pressure, sealing pressure |
| Pressure range (bar) | 6、10、16、25、40、60、100、160、200、250、300、400、500、600、750、1000 |
| Pressure Range (psi) | 100 200 300 500 750 1K 1.5K 3K 5K10K 15K |
| Signal output | 4~20mA 0.5~4.5VDC 0.5~4.5VDC 0~5VDC 0~10VDC RS485 RS232 |
| Signal Line Specifications | 2Wire 3Wire 3Wire 3Wire 3Wire 4 Wire 4 Wire |
| Supply voltage | 9~30VDC 5VDC 9~30VDC 9~30VDC 15~30VD 9~30VDC 9~30VDC |
| Accuracy | ±0.3%FS⼠0.5%FS |
| Medium temperature | -40~＋150℃ |
| Storage temperature | -40~＋125℃ |
| Zero temperature drift | ±0.02%FS/C |
| Sensitivity temperature drift | ±0.02%FS/'℃ |
| Zero temperature drift | ±0.02%FS/C |
| Long-term stability (1 year) | ±0.1%FS |
| Overload pressure | 300%FS |
| Response frequency (-3dB) | 3.2kHz |
| Destruction pressure | 500%FS |
| Temperature compensation | -40~+125℃ |
| Mechanical vibration | ±20g |
| Ambient temperature | -40~+85℃ |
| Shock (11ms ) | 100g |
| Protection class | Ip65 |
| Electromagnetic Compatibility | EN61000-6 |
| Material | 17-4PH |
| Certification Program | CE RoHS |
| Pressure port | M20×1.5G1/4NPT1/4 (others can be customized on request) |
| Electrical connections | Direct Lead M12 Connector Hirschmann (Mini) Hirschmann (DIN43650) |

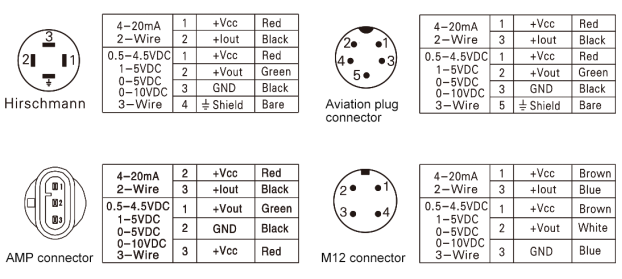

【Electrical interface and connection method】
【Scope of application】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

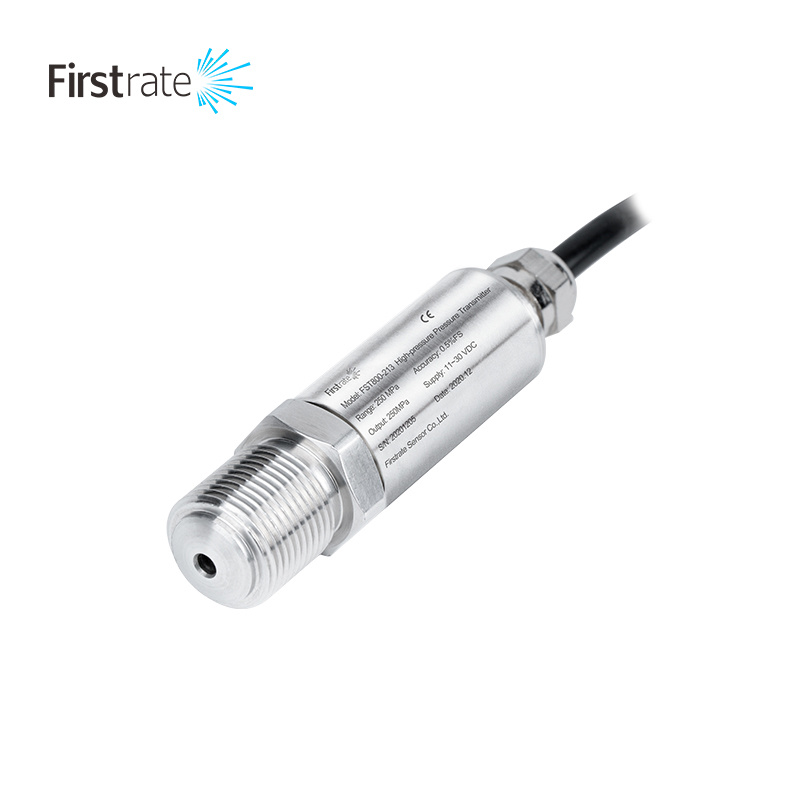

FST800-216 High temperature pressure sensor
Product model: FST800-216
Applications:
● Medical high temperature and high pressure disinfection
● Measurement of high temperature media such as steam and hot oil
● Measurement and control in the boiler industry
● High temperature pressure measurement and control for other automation systems
