Product features:

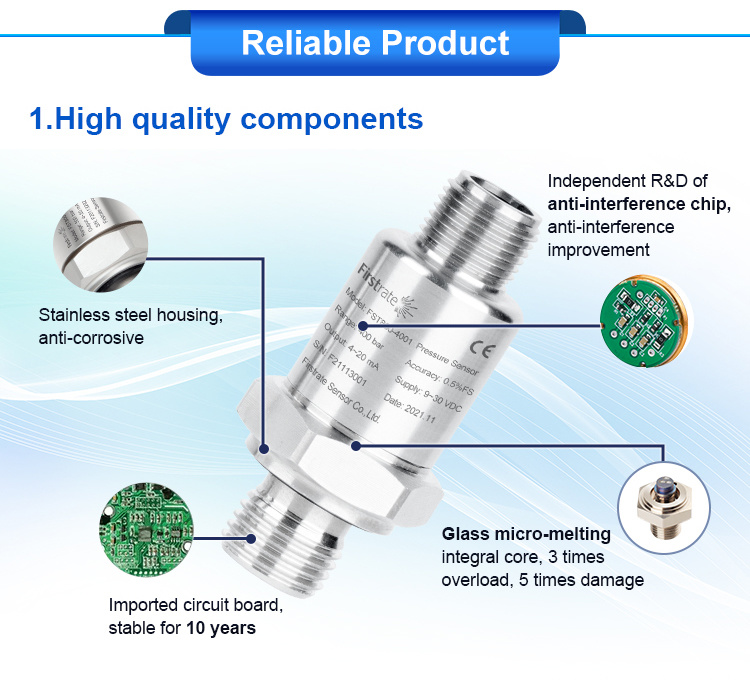

● Advanced micro fused silicon strain gauge ● Leak free elastomer structure
● Integrated temperature compensation ● Highly corrosion resistant SS housing
● Excellent shock, overload, & vibration resistance
● Independent pressure outputs

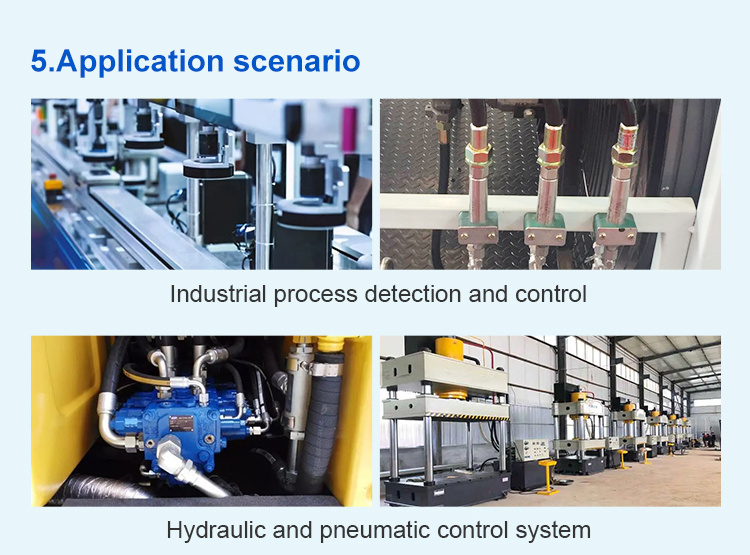

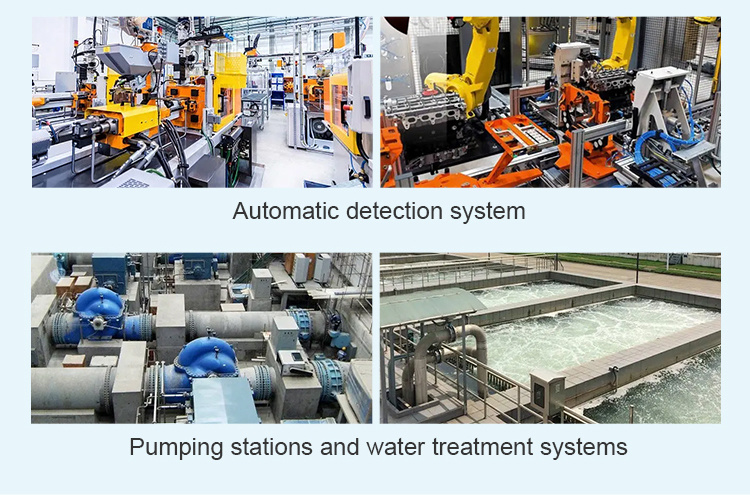

Applications:
● Industrial process and control ● Automated detection
● Hydraulic and full-motion control ● Water treatment system
● Industrial machinery manufacturing ● Pumping stations

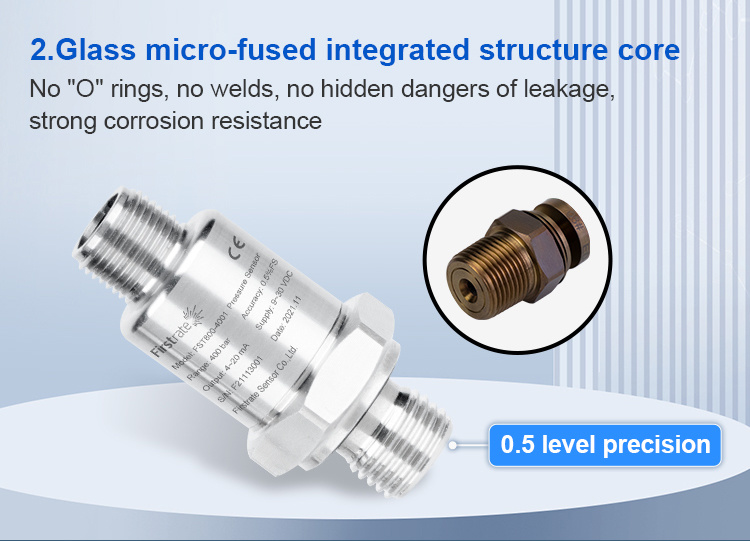

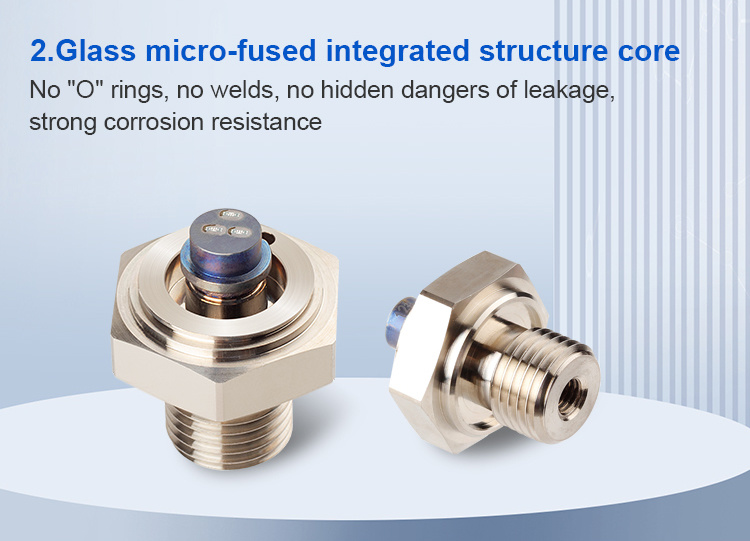

FST800-4001 Hydraulic pressure sensor adopts advanced glass micro-melting process, after high temperature sintering above 500 ℃, the elastomer adopts integrated design, no "O" ring, no welding seam, no hidden leakage, and strong corrosion resistance. Intelligent digital wide-range temperature compensation solves the temperature drift phenomenon of the sensor and improves the measurement accuracy and environmental adaptability of the sensor. Products are widely used in excavators, crane hydraulic systems, oil cylinder hydraulics, compressors, gas dispensers, refrigerators, refrigeration systems, pneumatic control equipment, industrial process testing and control and automated testing systems.
| Pressure type | gauge pressure |

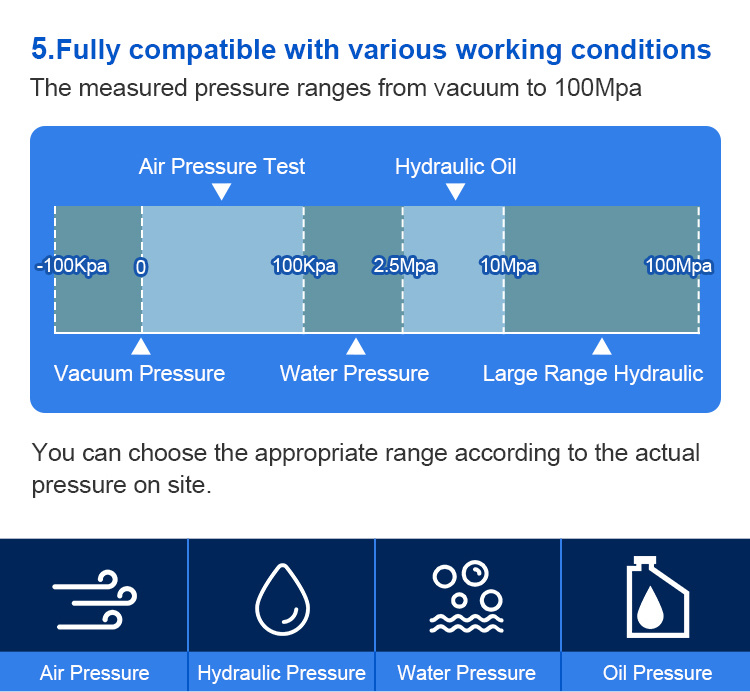

| Pressure range | 0~100MPa |
| Output signal | 4~20mA, 0.5~4.5VDC (proportional output) |
| Accuracy | ±0.5%FS、±1%FS |
| Supply voltage | 15~30VDC、5VDC |

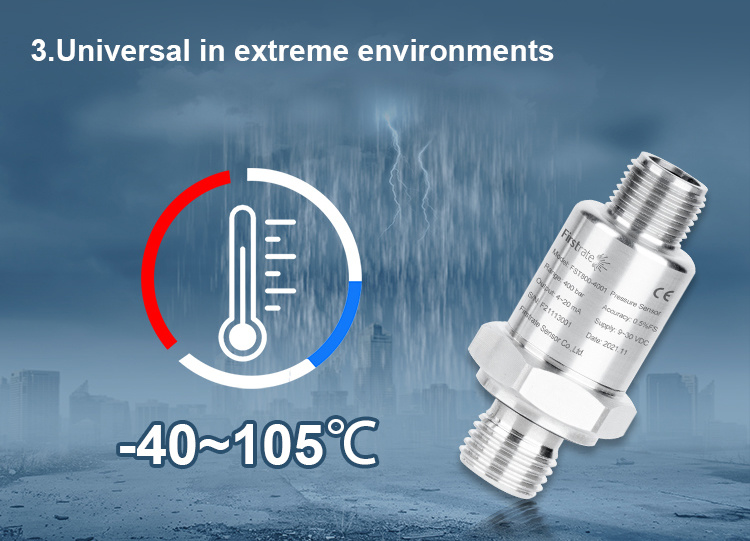

| Storage temperature | -40℃~+125℃ |
| Medium temperature | -40℃~+125℃ |
| Temperature compensation | -10℃~+70℃ |
| Long term stability | ≤±0.2%FS/year |
| Overload allowed | 300%FS |
| Destruction pressure | 500%FS |
| Shock (11ms) | 100g |
| Zero temperature drift | ＜0.02%FS/℃ |
| Full temperature drift | ＜0.02%FS/℃ |

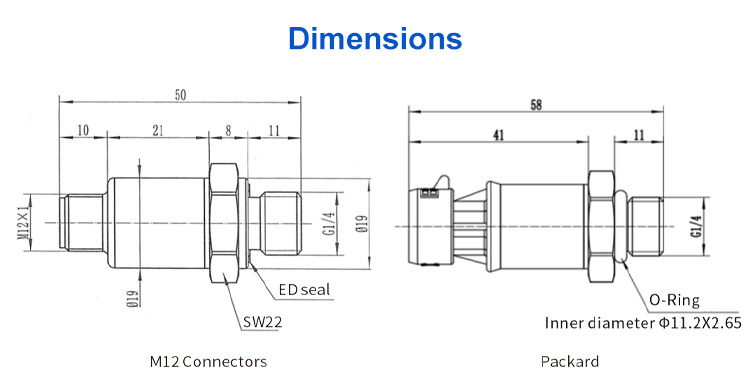

| Pressure port | M20*1.5, G1/4 (others need to be customized) |
| Electrical connections | M12 (cannot be customized) |

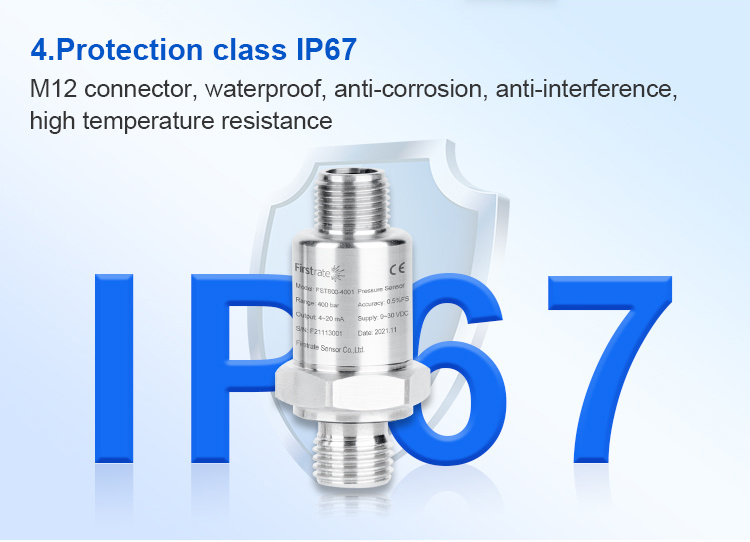

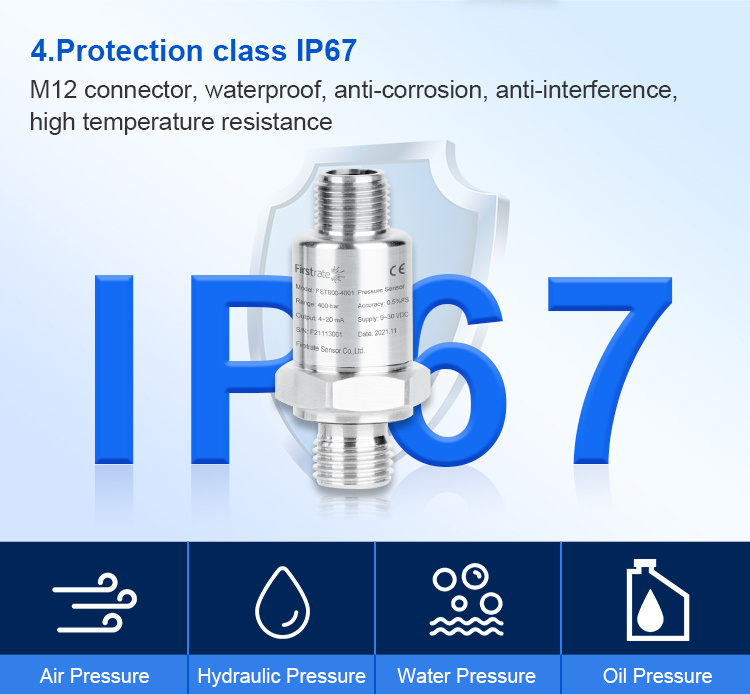

| Protection class | IP67 |
| Material | 304 stainless steel |
