【Product Description】
FST600-408 infrared temperature sensor is an integrated infrared temperature sensor. The sensor, optical system and electronic circuit are integrated in the stainless steel shell; it is easy to install, and the standard thread on the stainless steel shell can be quickly connected to the installation part; Accessories (such as purgers, mounting brackets, three-dimensional adjustable mounting brackets, purge protective sleeves, etc.) to meet the requirements of various working conditions.
【Technical Parameters】
Temperature measurement range (℃) | (0~100℃) (0~300℃) (0~500℃) Can be customized |
output signal | (4~20) mA, RS485 can be customized |
Signal line specifications | 2Wire、4Wire |
| Spectral range | 8-14um |
| Supply voltage | 10-30V DC、5-30V DC(RS485) |
Temperature measurement accuracy | ±2% of the measured value or ±2.5℃, whichever is greater |
| Spectral range | 8-14um |

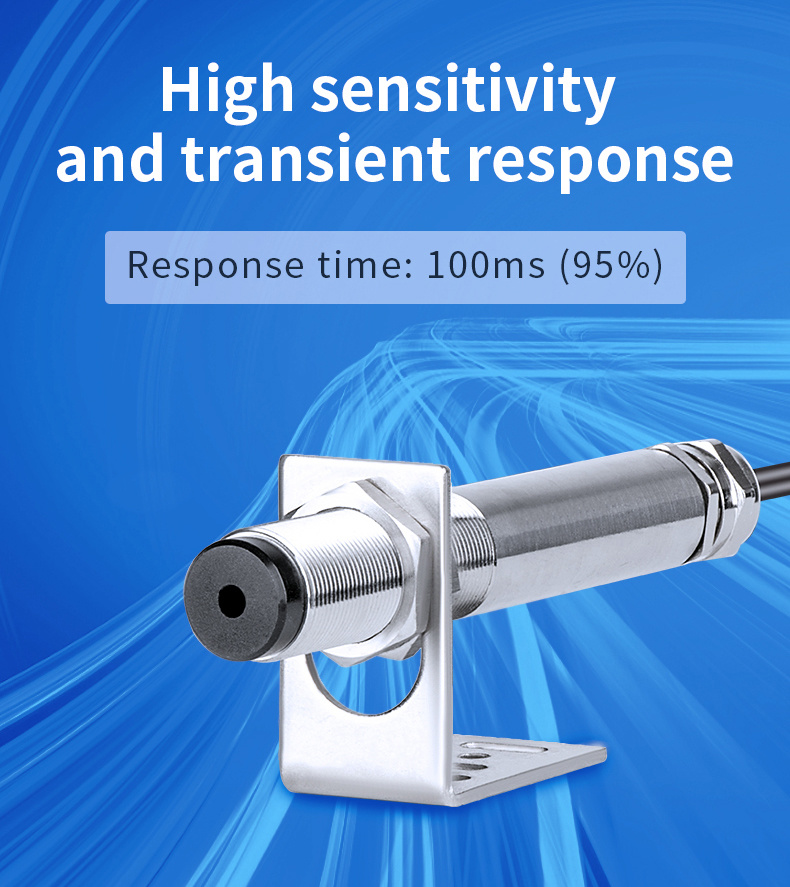

| Response time | 100ms（95%） |
ambient temperature | (0~+60)°C |
Storage temperature | (-40~+85)°C |
Response time | 300ms（95%） |
Protection level | IP65 |
Material | 304 |
| D:S | 20:1 |
【Features】
● Protection class: IP65
● Ambient temperature: 0 ~ 60°C
● Storage temperature: -20 ~ 80°C
● Relative humidity: 10 – 95% (non-condensing)
● Material: stainless steel
● Size: M18×1, length 106*18mm
● Cable length: 1.5 m (standard) other lengths can be customized
【Scope of application】
Power distribution cabinets, electricity, tobacco, heating furnaces, food, rubber, paper, plastics, packaging, printing and dyeing textiles, electrical, composite materials, equipment supporting, metallurgy, petrochemical systems, various kilns, heating furnaces, railways, and packaging machinery temperature monitoring, etc.
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST600-408 Anti-Microwave Infrared Temperature Sensor
Product model: FST600-408

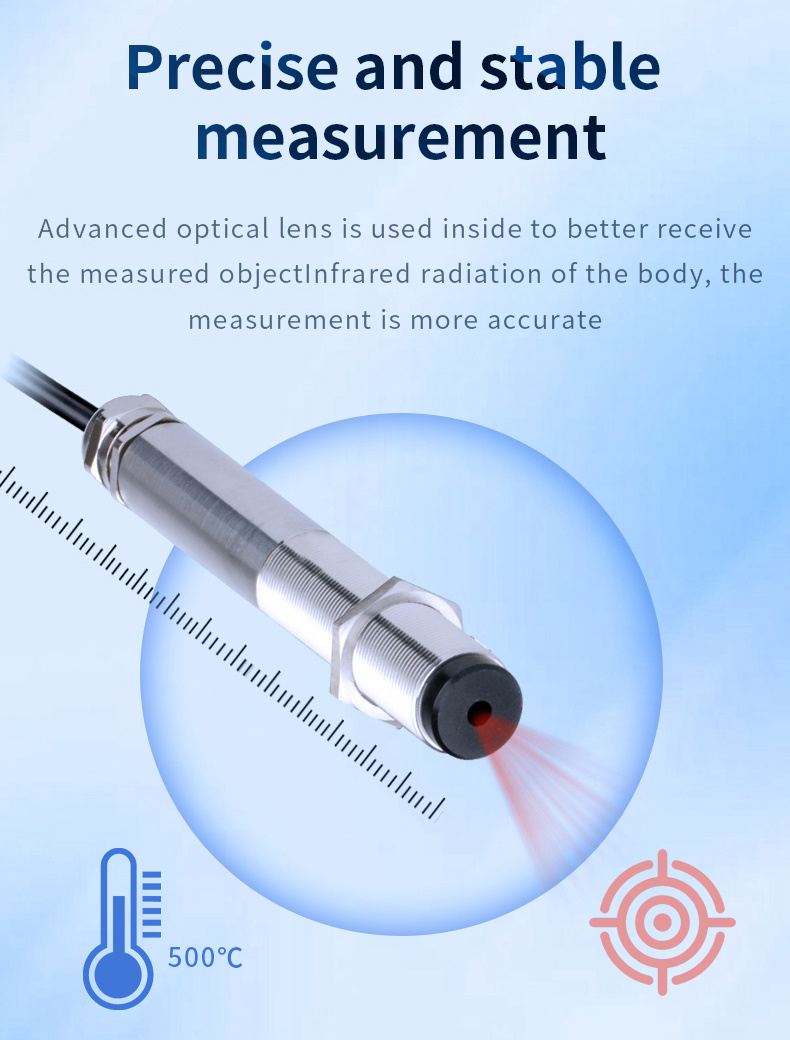

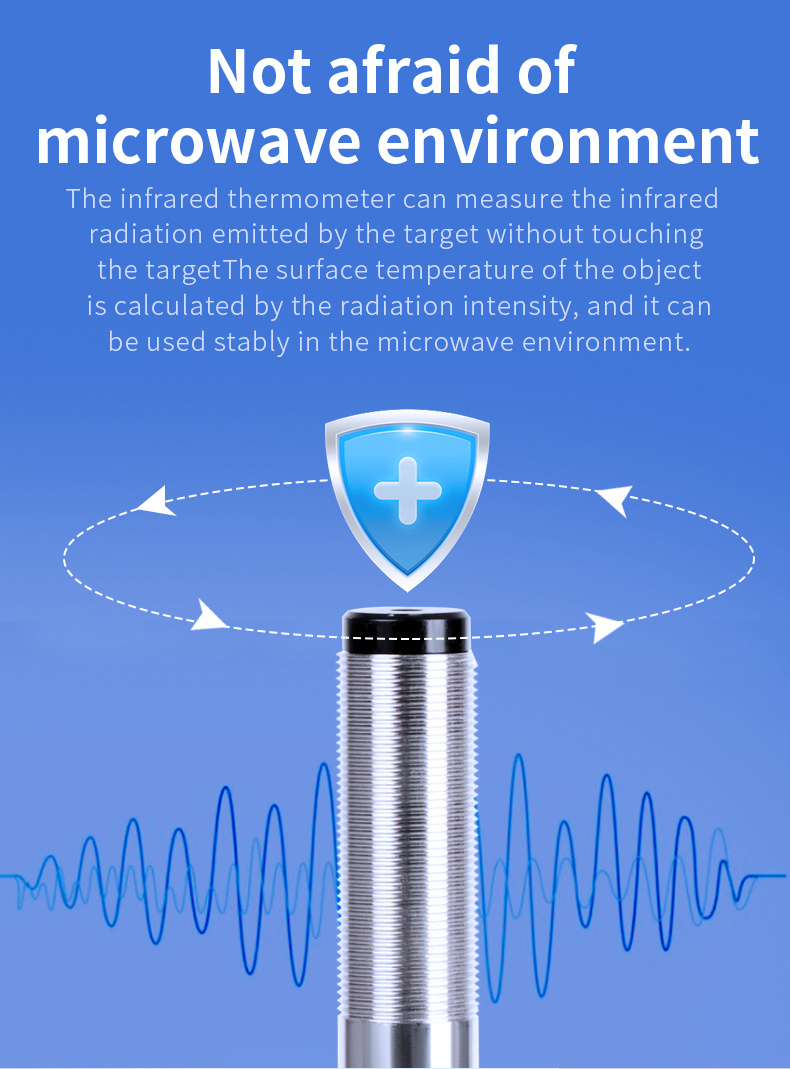

Product features: Infrared thermometers can calculate the surface temperature of an object by measuring the intensity of infrared radiation emitted by the target without touching the target.
Non-contact temperature measurement is the biggest advantage of infrared thermometers, allowing users to easily measure targets that are difficult to approach or move.
