【Product Description】

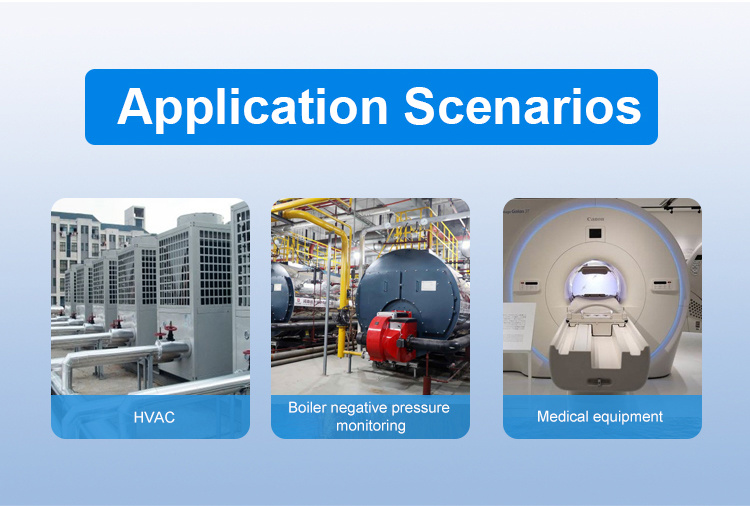

FST800-901 air differential pressure sensor is mainly used for various dry gas pressure and differential pressure measurement and monitoring occasions such as dry gas pressure, air inlet pipe pressure, indoor and outdoor differential pressure, cotton spinning tank, elevator front room pressure, staircase pressure measurement, etc. High accuracy, fast response, and good stability.
【Features 】
- Efficient lightning protection, strong anti -radio frequency and electromagnetic interference protection (transmitter);
- Easy to install and universal;
- Anti -wave surge and polar reverse protection (transmitter)
- Excellent impact resistance, overload, vibration resistance corrosion resistance;

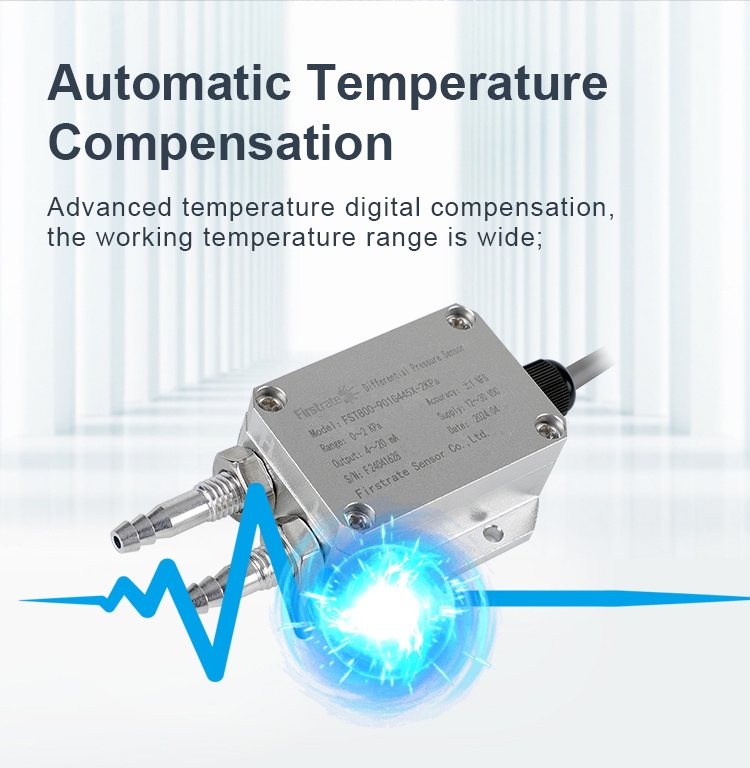

- Advanced temperature digital compensation functions and wide range of working temperature.
【Technical Parameters】
| Measured medium | Gas (weak corrosion and dryness) |
| Range | 0 ~0.5 .. 100kPa (other needs to be customized) |
| Output | 4~20mA (second -line system) 0~5V (third -line system) |
| Comprehensive accuracy | 0.5%FS, 1%FS of the soil, 1%FS |
| Powered by | 12 ~ 30VDC |
| Operating temperature | -10 ~ 80 ℃ |
| Temperature compensation | -10 ~ 70 ℃ |
| Overload | 150%FS |
| Destruction | 200%FS |
| Load Resistance | Current output: RL <(power supply voltage-9V) /20mA, Voltage output: RL> 100KΩ |
| Sealing level | IP65 |
| Electrical connections | Direct lead |
| Pressure connection | M10x15 front end bands φ_x005f tower -shaped air pressure joint |
| Connect the thread material | Aluminum alloy |

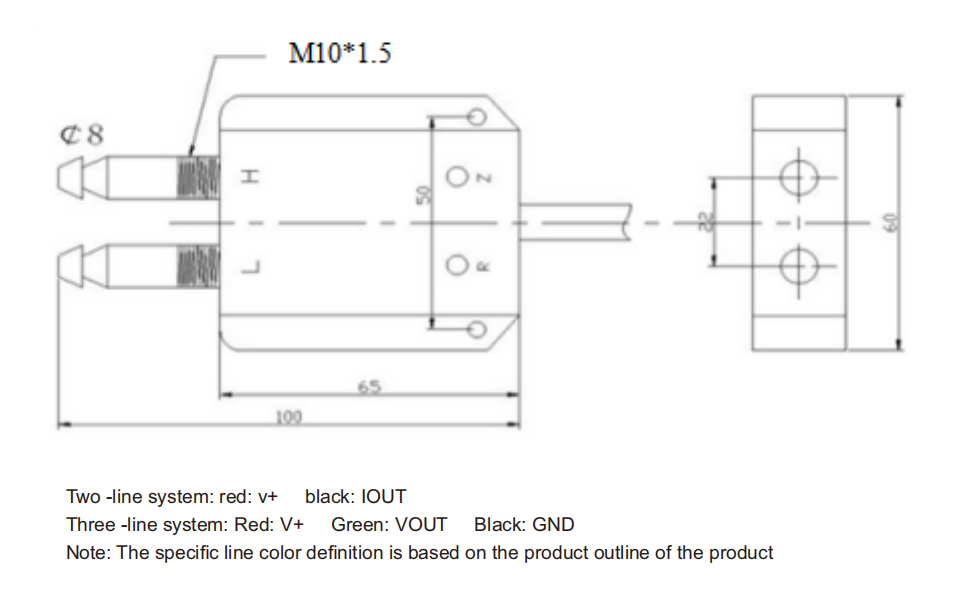

【External structure】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-901 Air Differential Pressure Transmitter
Product model: FST800-901
Product features:
● Easy to install and universal;
● Efficient lightning protection, strong anti -radio frequency and electromagnetic interference protection (transmitter);
● Anti -wave surge and polar reverse protection (transmitter)
● Excellent impact resistance, overload, vibration resistance corrosion resistance;
● Advanced temperature digital compensation functions and wide range of working temperature.
